Air/Multipurpose Hoses

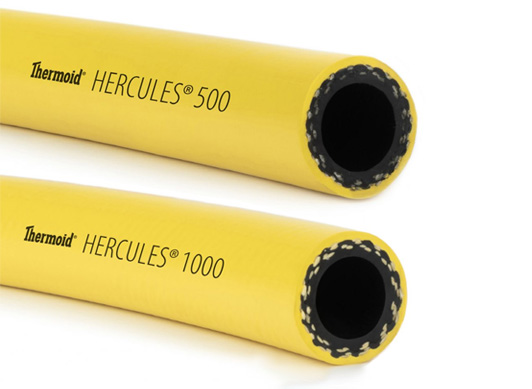

HERCULES® 500 AND 1000 MULTIPURPOSE

Hercules® 500 is a highly versatile, durable, abrasion-resistant multipurpose hose engineered to withstand harsh conditions. This hose is useful in rock drilling, air hammer, water jetting applications,
heavy construction, mining, quarry operations, transfer of petroleum or other solvent solutions and washdown operations.

Hercules® 1000 is a high-pressure, multipurpose hose engineered for extreme temperatures and demanding environments. Ideal for rock drilling, air hammer, water jetting, washdown, agricultural spraying, and petroleum or solvent transfer applications.

HERCULES® HOSE CUT LENGTH PROGRAM

The Hercules 500 Cut Length program allows hoses to be purchased in sizes of 25, 50, 100, 125, 150 and 200 feet. Item order numbers are listed here in our Industrial Hose catalog.
The Cut Length Program helps to:

  • Reduce reel scrap by purchasing pre-cut lengths.
  • Eliminate reel handling and hose cutting which helps save on labor.
  • Reduces inventory cost by carrying specific sizes vs. stocking full reels.

Submit a Product Inquiry

View Product Literature

RESISTANCE

Abrasions

Diesel Aromatic Fuels

Diesel Aromatic Fuels

Fats/Oily Edibles

Fats/Oily Edibles

Gasoline

Gasoline

Kerosene

Kerosene

Non-Conductive

Non-Conductive

Oil

Oil

Water

Water

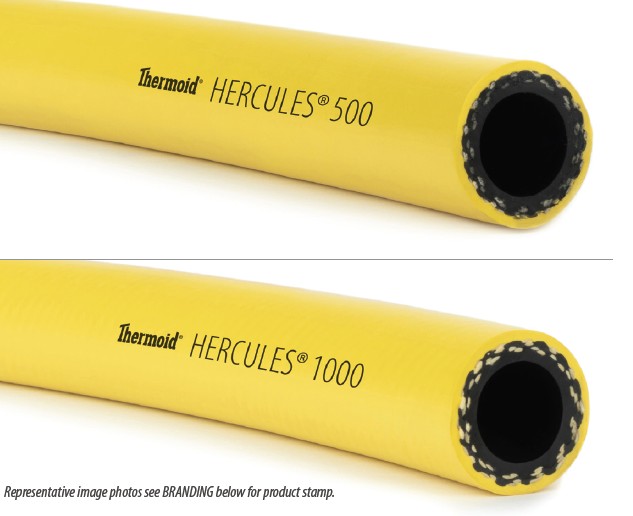

BRANDING: Thermoid Hercules Multipurpose Hose
Size I.D. 500 and 1000 PSI WP MSHA 1C-114/1 Made In USA
Non-conductive

COVER COLOR: Yellow

PRODUCT LITERATURE

View Hercules® 500 and 1000 Multipurpose in Thermoid Hose Products Catalog

View Hercules Cut Length Program in Catalog

CONSTRUCTION

CONSTRUCTION:

Non-Conductive

  • Safety Assurance

TUBE:

Nitrile Blend, ARPM – Class A

  • Capable of Handling Air, Bio-Diesel, Chemicals, Diesel, Ethanol, Gasoline, Kerosene and Water

COVER:

Carboxylated Nitrile Blend, ARPM – Class A

  • Abrasion Resistant
  • Oil Resistant
  • Flame Resistant MSHA Approved Cover

REINFORCEMENT:

Hercules 500: 4-Spiral Polyester Yarn on 1/4″ to 1″ &
4-Spiral Aramid Fiber Yarn on 1-1/4″ to 2″ providing
500 psi working pressure and 4:1 safety factor

Hercules 1000: 4-Spiral Polyester Yarn on 1/2″ &
4-Spiral Aramid Fiber Yarn on 3/4″ providing 1000 psi
working pressure and 3:1 safety factor

  • More Flexible than Braid Reinforced Hose
  • Easier to Route Assemblies
  • Easier to Coil and Handle
  • Less Susceptible to Premature Failure than
    Braided Hose if Subjected to Torque

TEMPERATURE RANGE:

-40°F to +212°F, -40°C to +100°C

PACKAGING:

Reels

  • Length varies by ID 250′ to 500′
  • Cut Length
    • Stocked cut length program 25′ to 200′

MULTIPURPOSE HOSE:

  • Ideal for Extra Heavy Duty Use in Pneumatics or the Transfer of Liquids that Include Solvents, Oils or Other Petroleum Products
  • Can be Used in a Wide Variety of Applications in Many Different Markets (Poultry, Construction, Mining, Quarry, Water Jetting)
